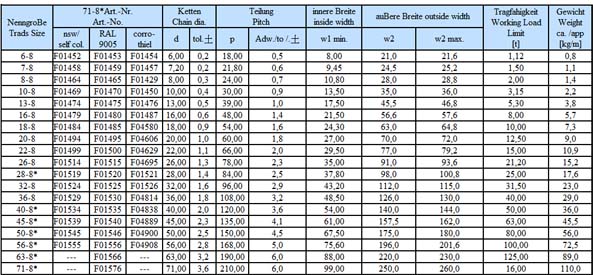

| 西德進口THIELE合金鋼鍊(全套管基樁適用) |
 |
 |
|
| |

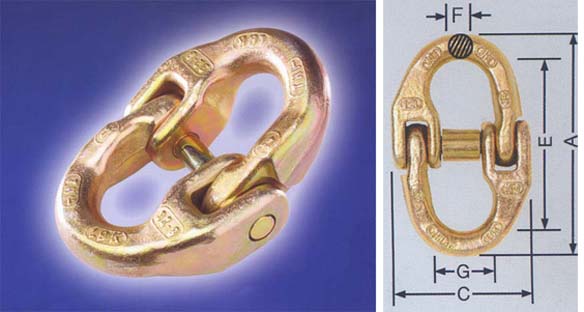

西德進口THIELE合金活動鍊接 |
|
| |
NenngroBe
Trade Size |
Kettennenndicke
Chain diameter
[mm] |
Art.-Nr.
Art.-No. |
Tragfahigkeit
Working Load
Limit[t] |
MaBe in [mm]
Dimensions in [mm] |
Gewicht
Weight
ca./app.
[kg] |
| E |
G |
A |
C |
F |
| 6-8 |
6 |
F30800 |
1,12 |
43 |
17 |
59 |
45 |
7,5 |
0,09 |
| 7-8 |
7 |
F30005 |
1,50 |
56 |
17 |
75 |
47 |
9 |
0,16 |
| 8-8 |
8 |
F30810 |
2,00 |
60 |
18 |
79 |
50 |
10 |
0,19 |
| 10-8 |
10 |
F30820 |
3,15 |
75 |
22 |
99 |
63 |
12 |
0,35 |
| 13-8 |
13 |
F30830 |
5,30 |
98 |
28 |
128 |
80 |
15 |
0,73 |
| 16-8 |
16 |
F30840 |
8,00 |
110 |
33 |
148 |
98 |
19 |
1,38 |
| 18-8 |
18 |
F30850 |
10,00 |
122 |
36 |
165 |
110 |
22 |
1,86 |
| 20-8 |
20 |
F30855 |
12,50 |
134 |
45 |
185 |
122 |
26 |
2,34 |
| 22-8 |
22 |
F30860 |
15,00 |
145 |
46 |
198 |
132 |
26 |
3,16 |
| 26-8 |
26 |
F30870 |
21,20 |
164 |
55 |
225 |
156 |
30 |
5,00 |
| 32-8 |
32 |
F30880 |
31,50 |
192 |
65 |
268 |
192 |
37 |
9,33 |
|
|
| 吊具組合型式 |
| |
| TWN 1750 |
TWN1751 |
TWN1752 |
 |
 |
 |
| |
|
|
| TWN1753 |
TWN1754 |
TWN1631 |
 |
 |
 |
| |
|
|
| TWN1632 |
TWN1681 |
TWN1682 |
 |
 |
 |
|
|
|
|
|
|
 |
|
 |
|
|
 |
